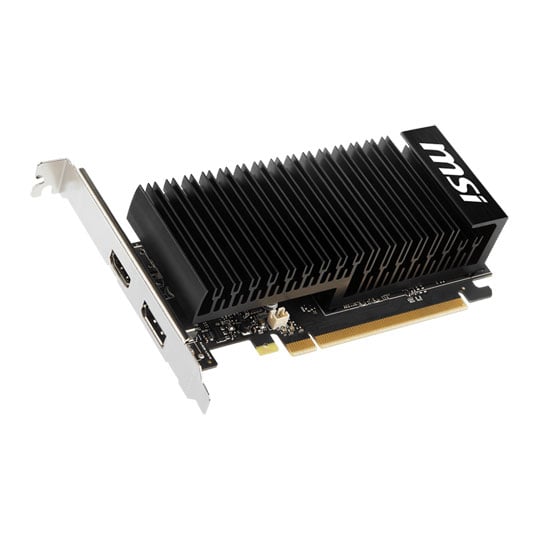

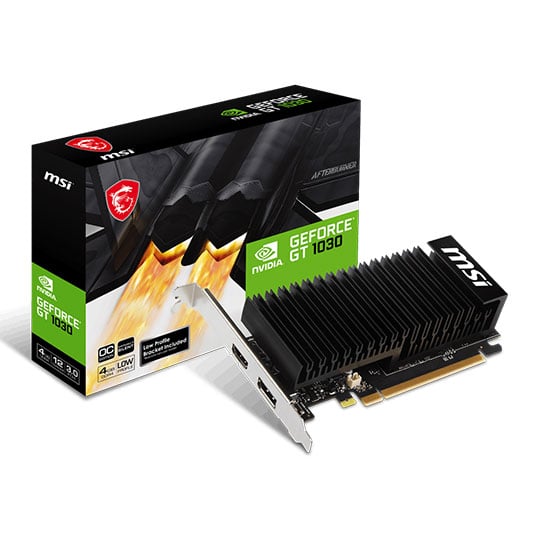

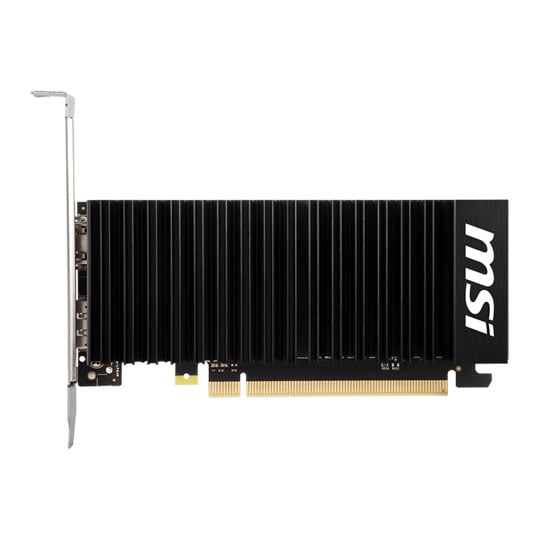

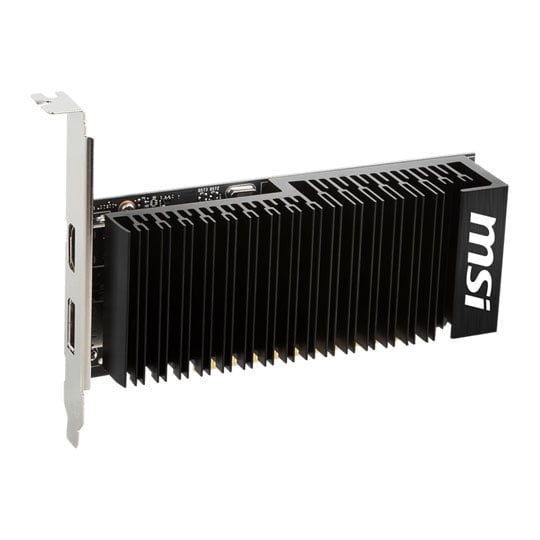

MSI NVIDIA GeForce GT 1030 4GHD4 LP OC 4GB Passive PCIe Graphics Card

GeForce® GT 1030 4GHD4 LP OC

Upgrade your PC’s graphics performance with the MSI GeForce® GT 1030 4GHD4 LP OC graphics card, designed for efficiency and versatility in compact systems. Featuring 4GB of high-speed DDR4 memory and 384 CUDA cores, this low-profile GPU delivers smooth visuals for everyday computing, 4K video playback, and light gaming, all while maintaining ultra-quiet operation thanks to its passive cooling design. With a boost clock of 1430 MHz and support for DirectX 12 and OpenGL 4.5, the GT 1030 4GHD4 LP OC ensures compatibility with the latest applications and games. Its slim form factor and low power consumption (just 20W) make it an ideal upgrade for small form factor PCs or home theater setups, while HDMI 2.0b and DisplayPort 1.4a outputs support crisp 4K resolution at 60Hz.

Low Profile Design

The low-profile design saves space, making it easier to build slim or compact systems.

Features

• NVIDIA GeForce GT 1030 GPU with 384 CUDA cores • Boost clock speed up to 1430 MHz

• 4GB DDR4 memory running at 2100 MHz

• 64-bit memory bus

• PCI Express 3.0 x16 interface (operates at x4) • Outputs: 1 x HDMI 2.0b (4K@60Hz), 1 x DisplayPort 1.4a • Supports DirectX 12 and OpenGL 4.5 • Low-profile, single-slot design for compact builds

• Power consumption of only 20W, no external power connector needed

• Supports up to 2 simultaneous displays

• HDCP 2.2 support for protected content playback • Dimensions: 150 x 69 x 38 mm • Recommended PSU: 300W
